A charger can have all the watts in the world and still be the weak link if the connection between the charger and pack is wrong. This RC charger connector guide is built for racers, speed runners, and hard bashers who need to charge high-output LiPo packs correctly without creating heat, resistance, or a dangerous mismatch at the bench.
Connectors are not just plug shapes. They are part of the power system. A loose bullet, undersized adapter wire, tired solder joint, or incorrect series lead can turn a fast charge into a hot mess. When you are running 4S, 6S, or 8S power with serious current demand, details that look minor on a casual build become race-day problems.

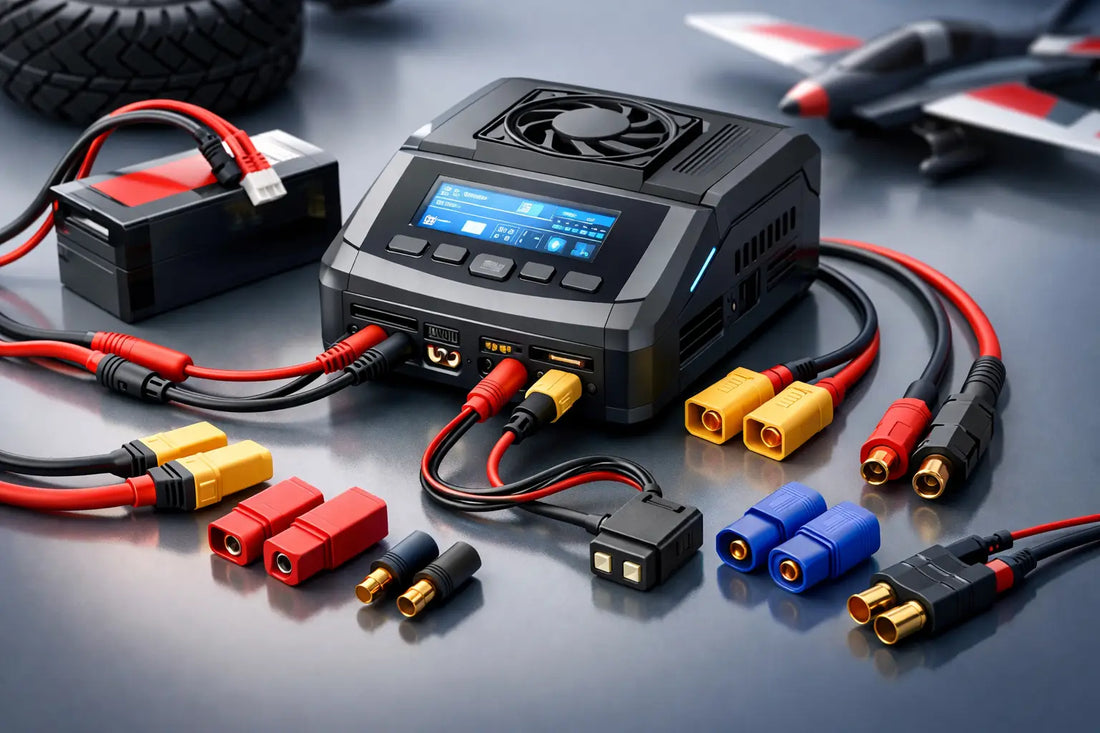

RC Charger Connector Guide: Know the Two Connections
Every balance-charged LiPo setup uses two separate connections: the main discharge lead and the balance lead. Both must be connected before a normal balance charge begins.
The main lead carries the charging current. This is where you will see high-current connector styles such as XT60, XT90, EC5, IC5, QS8, AS150, Traxxas-style plugs, Deans-style plugs, or direct bullet connectors. The connector on your battery must physically and electrically match the charger lead or a properly built adapter.
The balance lead does a different job. It lets the charger read and control individual cell voltages. A 2S pack uses a 3-pin balance plug, a 3S uses a 4-pin plug, a 4S uses a 5-pin plug, and so on. Most LiPo packs use the common JST-XH balance plug format, though plug spacing and battery-specific systems can vary. Do not force a balance plug into a port that does not match.
Your charger needs both inputs because main-lead voltage only tells part of the story. A 4S pack can show a reasonable total voltage while one cell is too high, too low, or drifting. The balance connection gives the charger the information it needs to bring every cell into line.
Main Leads: Match the Connector to the Current
For lower-current applications, a compact connector may be perfectly fine. For high-demand 1/8-scale builds, drag cars, and speed-run machines, connector choice needs to match the current, wire gauge, and physical space available in the chassis.
XT60 connectors are common on moderate-power packs and charging leads. XT90 connectors add capacity and are often used where current demand climbs. EC5, IC5, QS8, AS150, and large bullet systems are all familiar territory in high-output RC. Each has strengths, but the best connector is not automatically the biggest connector. It is the one that is correctly installed, rated for the job, fits the platform, and matches the rest of the system.
A high-current connector is only as good as the wire and solder work behind it. A large plug connected to thin wire does not create a high-current charging setup. Neither does a premium connector with a cold solder joint. If the joint looks dull, lumpy, cracked, or barely wets the terminal, fix it before charging a valuable pack.
For serious power systems, keep the connector standard consistent where possible. Running one connector type on your packs, charge leads, ESCs, and parallel accessories reduces adapter stacking and cuts down on preventable mistakes. ONYX RC POWER SYSTEMS USA customers building for max output already know the rule: every extra connection is another possible point of resistance.
Balance Plugs: Small Connector, Major Responsibility
Balance plugs carry low current, but they are not optional during a balance charge. Check the plug and wire bundle before every session. Bent pins, pulled wires, cracked housings, and loose crimp terminals can cause balance errors or false cell readings.
Never pull a balance plug out by the wires. Grip the plastic housing and remove it straight from the port. This matters even more with 6S and 8S packs, where there are more pins and more opportunities to damage a lead.
If your charger uses a built-in multi-port balance board, confirm that the battery cell count matches the slot you are using. If you use an external balance board, make sure the board is rated for the pack voltage and chemistry. A 6S pack does not belong in a 4S position, and guessing based on connector size is not a plan.
Choosing the Right Charge Lead or Adapter
The cleanest charging setup uses a dedicated charge lead with the correct battery connector on one end and the charger output connector on the other. For many chargers, that output side may use 4 mm or 5 mm bullet plugs, while the battery side matches your pack's main connector.
Adapters are useful, especially when a new pack does not match your existing bench setup. But adapters should solve a compatibility issue, not become permanent clutter. One quality adapter with properly sized wire is usually fine. A chain of three adapters, reducer plugs, and worn leads is asking for voltage drop and heat.
Before using any charge lead or adapter, verify polarity. Positive must connect to positive. Negative must connect to negative. Do not trust wire color alone on a homemade lead, an old adapter, or an unfamiliar connector. Use a multimeter whenever there is any doubt. Reversed polarity can destroy a charger, damage a battery, or create an immediate spark event.
Wire gauge matters too. A charge lead for a 1A receiver pack does not belong on a high-rate 6S charging session. For high-current charging, use short, quality leads with wire sized for the output you intend to run. Longer wire adds resistance. Thin wire adds more. Heat at the wire, plug, or solder joint is the warning sign that the system is not happy.
Series and Parallel Boards Are Not Interchangeable
This is where experienced hobbyists still get caught when they are moving fast at the bench.
A series charge lead connects packs end to end, increasing total voltage while capacity remains the same. Two matching 3S 5000mAh packs in series become a 6S 5000mAh combination. The charger must be set for the total cell count, and both packs should be the same capacity, chemistry, age, and state of health.
A parallel charging board connects matching packs side by side, keeping voltage the same while adding capacity. Two 3S 5000mAh packs in parallel remain 3S, but the total capacity becomes 10000mAh. Your charge current can increase accordingly, but only if the charger, board, leads, and packs are all rated for it.
Never connect packs in parallel when their individual voltages are far apart. That voltage difference can cause a violent equalization current before the charger has a chance to control anything. Check each pack first. For race packs, keeping them within a very tight per-cell voltage range before parallel charging is the smart move.
Do not improvise series or parallel harnesses from random connectors and spare wire. The polarity and balance wiring must be exact. A purpose-built harness, inspected regularly, is worth far more than the cost of replacing a damaged high-performance LiPo pack.
Set Charge Rate by the Pack, Not by Ego
A bigger charger does not mean every battery should be charged at maximum output. Start with the battery manufacturer's recommended charge rate. For many LiPo packs, 1C is the conservative baseline. A 5000mAh pack charged at 1C receives 5 amps. A 8000mAh pack charged at 1C receives 8 amps.
Some performance packs are rated for higher charge rates, but that does not mean higher is always better. Faster charging saves time between rounds, yet it can add heat and reduce long-term pack life. The trade-off depends on the pack design, its condition, charger accuracy, ambient temperature, and how much you value maximum turnaround versus maximum cycle life.
For a speed-run or drag-race battery, do not charge a pack that is still hot from a pass. Let it cool first. Charging heat on top of discharge heat is hard on cells. The same rule applies after charging: a pack that comes off the charger unusually warm deserves attention before it goes into a high-load build.
Pre-Charge Checks That Prevent Expensive Problems
A quick inspection takes less time than replacing an ESC, charger, or battery. Before connecting power, check these five areas:
- Confirm the charger is set to LiPo balance charge, not NiMH, Pb, storage, or an incorrect chemistry mode.
- Match the cell count shown on the charger to the battery label and balance-plug cell count.
- Inspect the main connector, balance plug, leads, and solder joints for damage or heat discoloration.
- Verify charge current against the battery capacity and the pack's stated charge-rate limit.
- Place the pack in a suitable fire-resistant charging location and stay present while it charges.
Build a Charging Bench That Can Keep Up
The best charging setup is boring in the right way. It works every time, the connectors fit without force, the leads stay cool, and you know exactly what each adapter does. Label custom leads with connector type, polarity, and intended use. Keep series leads separate from parallel boards. Retire damaged connectors instead of hoping they survive one more session.
For high-performance RC, charging is not downtime. It is part of the build. Use clean connections, correct settings, and charge hardware that matches the power level of your packs. That is how your batteries show up to the next pass ready to hit hard instead of becoming the reason your day ends early.
