A servo can look fine on the bench, then fold the first time your speed-run car hits a rough patch at 100 mph. That is why knowing how to test RC servo performance is not just basic maintenance. It is how you catch weak centering, bad power delivery, stripped gears, and binding steering before they turn into a missed pass or a wrecked body.
For high-power RC builds, steering is part of the power system. A big motor, serious LiPo pack, and aggressive gearing mean nothing if the car will not hold a line when the load gets real. Test the servo the way you run it: with the correct voltage, a clean signal, and enough mechanical load to expose problems.
How to Test RC Servo Function Before Installation

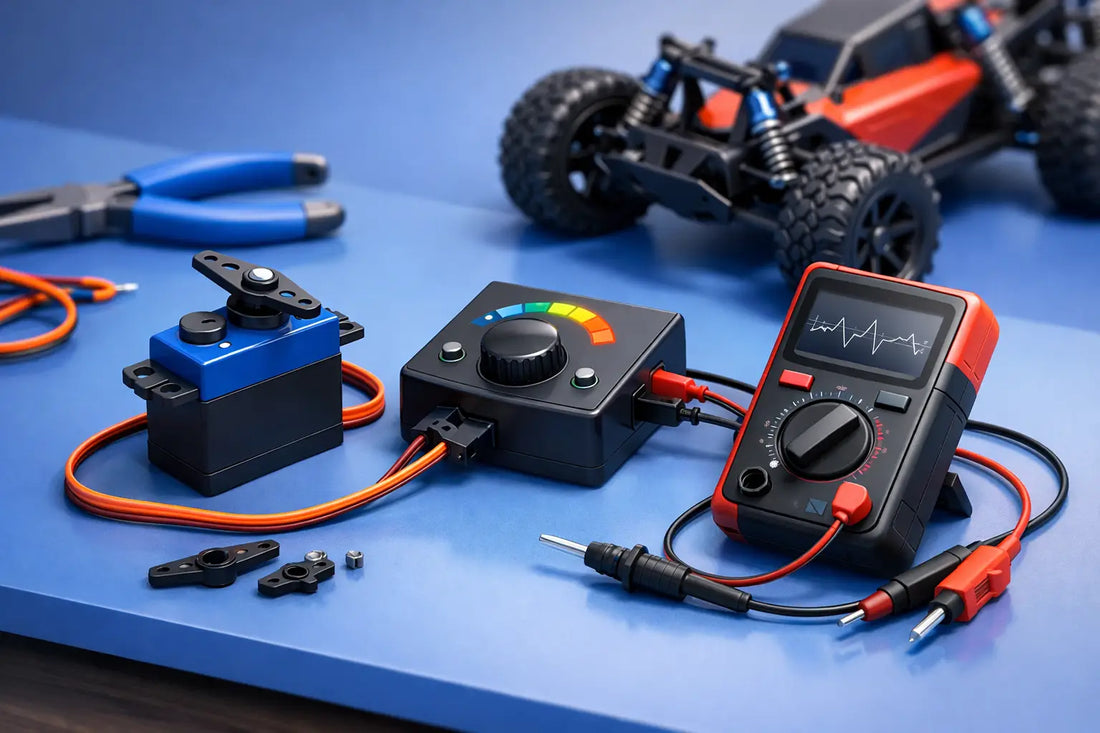

The cleanest first test is on the bench before the servo goes into the chassis. You need a charged receiver pack, a receiver and transmitter, or a dedicated servo tester. A servo tester is fast because it sends a direct control signal without requiring a radio setup. A receiver setup is better when you want to verify the entire vehicle system, including the receiver, transmitter, ESC BEC, extensions, and steering channel settings.
Start by checking the servo lead. Look for cuts in the insulation, loose pins, green corrosion, or a plug that feels sloppy in the receiver port. A damaged signal wire can cause random twitching that looks like a bad servo. A loose positive or negative lead can make the servo reset under load.
Power the servo with the voltage it is rated to handle. This matters. Many modern high-torque servos are rated for 7.4V or 8.4V, while others are designed around 6.0V. Do not assume every servo can take direct 2S receiver power. Check the servo specifications and the output voltage of your ESC's BEC before plugging it in.
With the horn removed, command left, center, and right. The output spline should move smoothly and stop decisively. It should not chatter, pause, growl continuously, or wander away from center. A tiny amount of noise at the end of travel can be normal, especially with a high-torque digital servo. Constant buzzing while the servo is unloaded is not a good sign.
Check Centering and Return-to-Center Speed
Centering is where weak servos expose themselves. In a drag car or speed-run build, a servo that returns a few degrees off-center can send the chassis toward a curb, a timing cone, or somebody else's lane fast.
Use your transmitter's steering trim to center the servo, then fit a horn or servo arm. Move the steering command left and right repeatedly, releasing it to neutral each time. Watch whether the horn returns to the same spot. For a more precise test, place a small reference mark on the case and horn, or use a pointer aligned with a straight edge.
A healthy servo snaps back to a repeatable center position. If it returns differently after every sweep, the issue may be worn gear teeth, a damaged output spline, a failing potentiometer, or internal electronics that cannot hold position. On a high-mileage basher, some play may be acceptable. On a speed-run or drag setup, inconsistent centering is a no-go.
Do not confuse servo centering problems with radio endpoint or trim problems. First, center the transmitter trim and sub-trim. Then confirm the servo is centered electronically before installing the horn as close to straight as possible. Use minor trim adjustments only after the mechanical setup is correct.
Test the Servo Under Real Steering Load
A no-load test only proves the servo can move itself. It does not prove it can turn tires on a heavy 1/8-scale rig with sticky rubber, high caster, and the front end loaded at speed.
Install the servo in the chassis and disconnect the servo horn from the steering linkage. Turn the front wheels by hand through the complete range. They should swing freely with no tight spot, grinding, or suspension bind. Check the bellcranks, bearings, rod ends, hinge pins, tire rub, and steering stops. If the steering system binds, even the strongest servo will run hot, pull hard current, and eventually quit.
Once the linkage moves freely, reconnect the servo horn at neutral. Command full left and full right while the vehicle sits on a stand. The servo should reach both stops without straining. Set transmitter endpoints so the servo stops just before the steering system reaches a hard mechanical stop. Forcing a servo into the stops is a fast way to cook it.
Now put the vehicle on the ground. With the radio on, gently hold one front tire and command steering. You are not trying to overpower the servo or damage it. You are checking whether it holds direction without buzzing excessively, skipping, or collapsing back toward center. Repeat on both sides.
High-torque steering does draw serious current. If the servo slows down, resets the receiver, causes the ESC fan to cycle, or makes the radio system brown out when the tires are loaded, the issue may be the BEC instead of the servo. A capable servo fed by a weak BEC is still a weak steering system.
Verify BEC Voltage and Power Delivery
A high-voltage servo needs a power source that can support it. Many ESC internal BECs are fine for standard steering servos but get overwhelmed by large digital units, especially when the vehicle is stationary and the tires are fighting the surface.
Use a multimeter to check receiver voltage at an open receiver port with the system powered. Then watch what happens while you work the steering under load. If voltage drops sharply, the receiver may reset or the servo may act lazy and unpredictable. That is your warning sign.
For demanding builds, an external BEC can be the right move. It depends on the servo's voltage rating, the ESC's BEC amperage, vehicle weight, tire size, steering geometry, and how violent the use case is. A lightweight street car with narrow tires has different demands than a big off-road basher or a drag car with wide front tires and a tight steering setup.
Also inspect every connection between the battery, ESC, receiver, and servo. A weak solder joint or tired connector creates resistance. Resistance creates voltage drop. Under hard steering load, that drop can look exactly like an electronics failure.
Listen for Gear Damage and Watch for Slop
A servo does not have to be dead to be done. Excessive slop at the output shaft is a warning, especially when it grows after a hard impact. Hold the chassis steady and gently rock the front wheels left and right. Some movement from rod ends and bellcranks is normal. A large delay before the servo arm begins moving points toward worn servo gears or a loose horn.
If the servo clicks, skips, or suddenly jumps while turning, inspect the gears. Metal gears survive impacts better than plastic, but they can still chip, strip, or bend. Water and dirt can also work their way inside, turning smooth gear movement into a rough, inconsistent mess.
Check the servo horn screw, too. A loose screw can mimic stripped gears because the horn slips on the output spline. Tighten it correctly, but do not crank it down so hard that you damage threads or the spline.
Common Test Results and What They Mean
If the servo twitches with no steering input, start with the receiver connection, radio batteries, and signal wiring. If it buzzes only at full lock, reduce endpoints or find the mechanical bind. If it is slow but consistent, verify voltage and BEC capacity before replacing the servo.
If it will not center, has obvious output-shaft play, or skips under moderate load, replacement is usually the smarter move. Rebuilding can make sense for a premium servo when gear sets are available, but racers should be honest about the cost of a questionable steering component. A servo is cheaper than the damage from one bad high-speed correction.
Before the next pass, test steering with the same focus you give battery voltage, connector condition, and gear mesh. The fastest builds are not just loaded with power. They are controlled by parts that still answer the call when the surface gets rough and the trigger is pinned.
