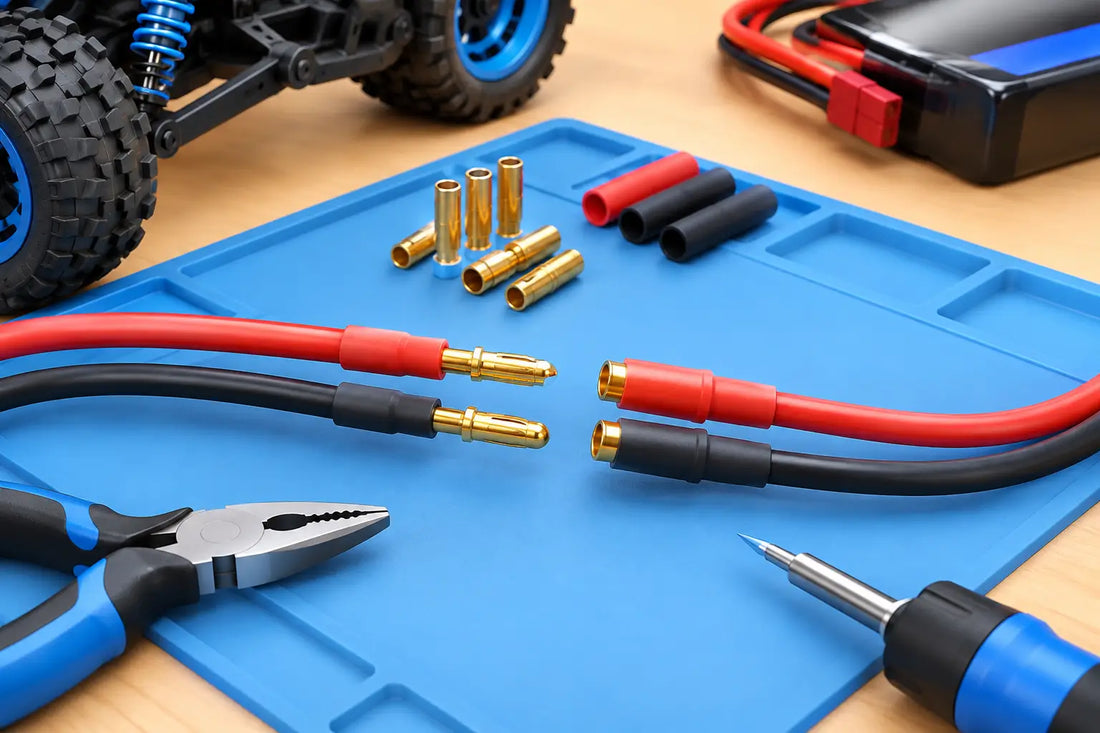

A loose bullet connector can turn a hard-hitting RC launch into a dead stop, a hot plug, or an expensive power-system failure. Knowing how to install bullet connectors correctly matters when your build is pulling serious current through a 3S, 4S, 6S, or 8S setup. This is not the place for cold solder, exposed wire, or guessing at polarity.
For speed runs, drag builds, and high-demand bash rigs, your connector is part of the power system. A clean, low-resistance solder joint helps your battery, ESC, and motor deliver what they were built to deliver. Do it once. Do it right. GET POWER TO THE GROUND.
Choose the Right Bullet Connector Size
Bullet connectors are commonly measured by diameter: 3.5mm, 4mm, 5mm, 5.5mm, 6mm, 6.5mm, and larger. Bigger is not automatically better. The correct size depends on the current draw, wire gauge, available space, and the connectors already used on the rest of your setup.
A 3.5mm or 4mm bullet can be a solid choice for lighter applications, but it is not where you want to be on a high-amp 1/8-scale speed build. For serious 4S to 8S systems, larger bullets are often used because they offer more contact area and can handle heavier wire. That said, oversized connectors can add weight, take up room, and make packaging harder in tight chassis layouts.
Match the bullet size to your ESC leads, battery leads, and expected load. Also check the fit before soldering. Some brands use slightly different tolerances, and a connector that feels sloppy or excessively tight before installation will not improve after heat is applied.
Confirm Male and Female Orientation Before You Start
RC hobbyists often call the pin side “male” and the socket side “female,” but product descriptions are not always consistent. Ignore the label if necessary and look at the actual contact: the solid pin inserts into the hollow socket.
For battery-side wiring, the safest practice is to ensure that no energized positive terminal can be easily touched by a loose metal object. Many racers use a protected socket-style terminal on the battery positive lead for that reason. Whatever orientation your fleet uses, stay consistent across every pack, ESC, charge lead, and adapter.
Never assume red is positive just because the wire is red. Verify it against the existing connector, wiring diagram, or a multimeter before you commit solder.
Tools You Need to Install Bullet Connectors
A real soldering setup makes the job cleaner and faster. Trying to solder large bullets with an underpowered iron usually creates a cold joint because the connector acts like a heat sink.
For a proper install, have these on the bench:
- A quality soldering iron or station with enough wattage for your wire and connector size
- Rosin-core electronics solder suitable for RC wiring
- Heat shrink tubing sized for the wire and connector barrel
- Wire strippers and flush cutters
- A bullet connector holder, clamp, or helping-hands tool
- A heat gun or controlled flame source for shrinking tubing
- A multimeter for checking polarity and continuity
How to Install Bullet Connectors Step by Step
Start with the battery unplugged from everything. If you are changing connectors on a LiPo pack, work on one wire at a time. Cutting both leads at once can create a direct short if the cutters bridge the terminals. A shorted LiPo can deliver brutal current in an instant.
1. Slide on the Heat Shrink First
Before stripping or soldering, slide the heat shrink tubing onto the wire. It sounds obvious, but nearly everyone has completed a perfect joint and then realized the tubing is still sitting on the other side of the connector.
Push the tubing far enough back that it will not shrink from the heat of the soldering process. If you are using a connector with a separate insulating sleeve, get that on the wire now too.
2. Cut and Strip the Wire Cleanly
Cut the old connector off one lead only. Keep the other lead connected and safely out of the way. Strip just enough insulation to fill the connector cup or solder barrel, usually around 1/8 to 3/16 inch depending on connector size.
Do not nick strands while stripping. Missing strands reduce conductor area, and a damaged wire can become a hot spot under load. Twist the exposed strands lightly so they stay together, but do not twist them into a stiff rope.
3. Tin the Wire and Bullet Cup
Tin the wire by heating the copper from underneath and feeding solder into the strands from above. The finished wire should look silver and fully wetted, not like a giant round blob of solder.
Then secure the bullet connector with the solder cup facing upward. Heat the cup and add solder until it is roughly half to two-thirds full. Do not overfill it. Too much solder can create a mess when the wire enters the cup, and it may prevent the connector from seating correctly in its housing or sleeve.
For larger connectors, a clamp or dedicated bullet holder is worth using. Do not hold the connector with your fingers. It will get hot fast.
4. Join the Wire to the Connector
Reheat the solder in the bullet cup until it flows. Insert the tinned wire straight into the molten solder and keep it fully seated. Remove the iron while holding the wire still for several seconds.
The joint should cool without movement. If you wiggle the wire while the solder is setting, the result can be a dull, grainy cold joint. Cold joints add resistance, create heat, and can fail when your rig is pulling hardest.
A good solder joint is smooth, shiny, and fully bonded from the wire strands into the connector cup. The wire should sit straight, with no copper exposed beyond the edge of the barrel.
5. Inspect Polarity Before the Second Lead
Before touching the second wire, compare the new connector to the matching ESC, battery, or charge lead. Use a multimeter if there is any doubt. This is the moment that prevents reverse-polarity damage.
Once you confirm the first lead is correct, repeat the process on the second lead. Keep the completed lead covered and away from the wire you are cutting and soldering. Never allow the two bare leads to touch.
6. Shrink and Secure the Insulation
Let the connector cool completely, then slide the heat shrink over the soldered barrel. Shrink it evenly until it grips the wire and covers every exposed conductive area. If your bullet system includes plastic caps or housings, install them according to their intended orientation.
The finished connection should have strain relief. If the wire flexes directly at the edge of a rigid solder joint, repeated impacts can eventually fatigue the copper. Heat shrink helps, but proper wire routing inside the chassis matters too.
Test the Connection Before Sending It
Do not plug a fresh connector straight into an expensive ESC and send a full-throttle pass. First, inspect both bullets for loose solder, exposed strands, melted insulation, and uneven heat shrink.
Use a multimeter to confirm continuity through each lead and verify that positive and negative are not shorted together. Then connect the pack and ESC carefully. A small spark can be normal with some ESC capacitor banks, especially without an anti-spark setup. Continuous arcing, smoke, heat, or a connector that will not seat correctly is not normal. Disconnect immediately and inspect the work.
After your first run, check connector temperature. Warm is one thing. Hot enough that you cannot comfortably touch it is a warning sign of resistance, overload, poor fit, or a weak solder joint. A high-power RC system will expose bad connections fast.
Common Bullet Connector Mistakes
The biggest mistake is using a soldering iron that cannot heat the connector quickly enough. Long heat exposure travels up the wire, damages insulation, and can weaken the connection before the joint even looks finished.
Another common problem is mixing connector sizes or brands that do not mate securely. A 5mm bullet is not interchangeable with a 5.5mm bullet just because it looks close. Loose fitment creates arcing and heat. Forced fitment can damage the contact surface.
Finally, avoid adding adapters everywhere. An adapter can be useful for a temporary test or a specific battery rotation, but every extra connection adds another possible resistance point. For race-focused builds, direct, correctly sized connectors are usually the cleaner move.
A clean bullet install is small work with big consequences. Take the extra minute to verify polarity, build a solid joint, and route the wire without stress. When the trigger goes down, your power system should be thinking about speed, not surviving a connector failure.
